Description

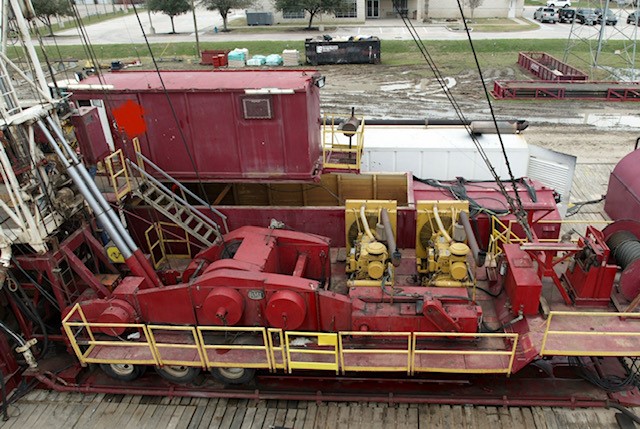

1.)  RMI W4610 (Skytop Brewster N46) Drill Rig

• Drawworks: 46” X 10” Single Drum w/Parmac 22″ Auxiliary Brake

• Deck Engines: (2) Caterpillar C-15 500 HP each (1000 HP)

• Mast: 112 ft. – 300,000 Lb. Capacity

• Rotary Table: Oilwell 27.5” x 53.5”

• Swivel: Brewster 6SX 150 Ton w/Hydraulic Kelly Spinner

• Block: McKissick 150 Ton Drilling Block

• Kelly: 42 ft. x 5 ¼” Hex Kelly

• Mud Pumps: Gardner Denver PZ9 powered by Caterpillar D-398 1000 HP each

• Doghouse: Top Doghouse w/Geolograph & Auto Driller Bottom Doghouse & 20,000 Gallon Water Tank

• BOP: Annular & Double 11″ x 5M Shaffer Choke Manifold 5000 PSI & 5 Station 100 Gallon Closing Unit

• Misc: (1) Rig Manager Quarters Skidded, (1) Crew Quarters Skidded

• Substructure: Rated at 300,000
• RIG HAS A API Cat IV inspection

2.) OR CROWN 750 DRILL RIG PACKAGE OPTION

• CROWN 750 Drilling Rig
• Drawworks: Crown CC750 SD powered by (2) Cat C-18 575 HP each w/Allison 5610H transmissions
• Auxiliary Brake: Eaton 424
• Mast: Crown 118’ 350,000 lbs SHL
• Substructure: Crown Telescoping 15 ft floor height
• Traveling Equipment: Ideco UTB-160
• Rotary Table: 27.5” Gardner Denver
• Doghouse: Upper & Lower Doghouse w/hydraulic lift
• BOP Equipment: 11” x 5M Annular & Double
• Choke Manifold: 4” x 2” 5000 PSI
• Closing Unit: Advanced Pressure 5 station, 100 gallon
• Auxiliary Equipment: 500 BBL Water Tank 10,000 Gallon Fuel Tank Forum 2250 Pipe Wrangler Ingersoll Rand Air Hoist Mud Storage Shed
• ** SEE ATTACHED PICTURES OF RIG PACKAGE**

SALE PRICE $ 539,000 For Partial Rig package / $325,000 for BARE RIG Only (Rig, sub & doghouse)
