Description

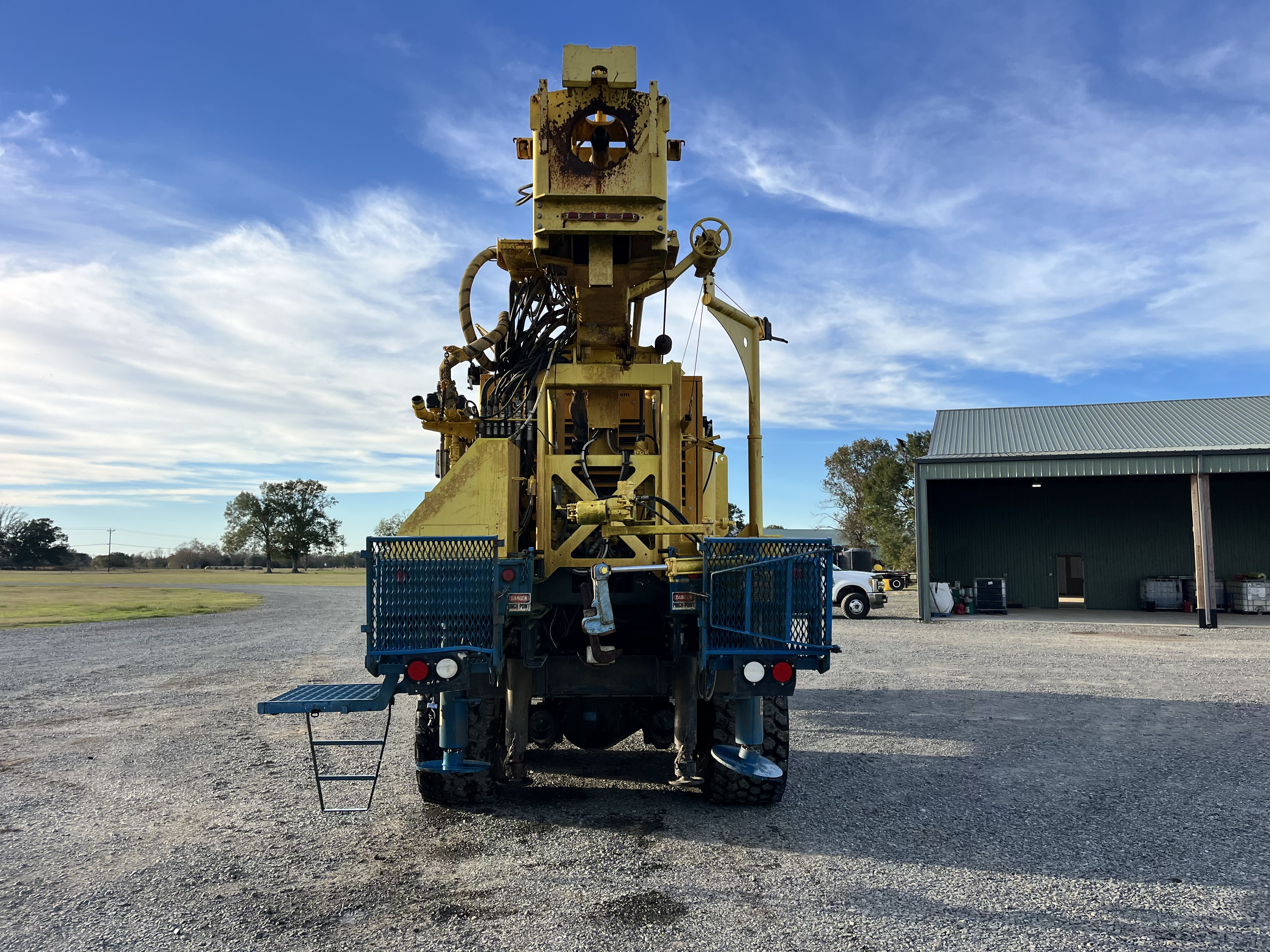

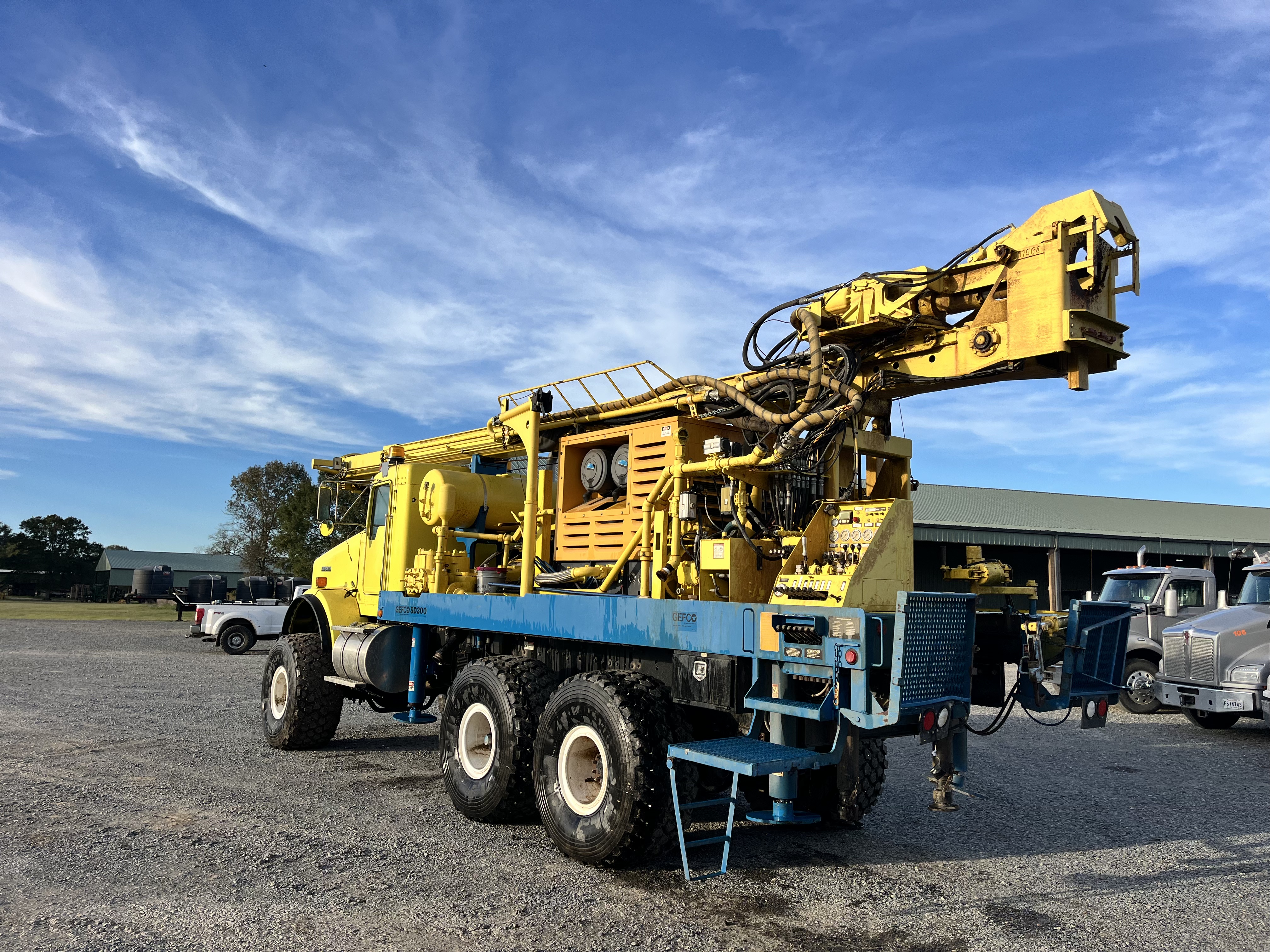

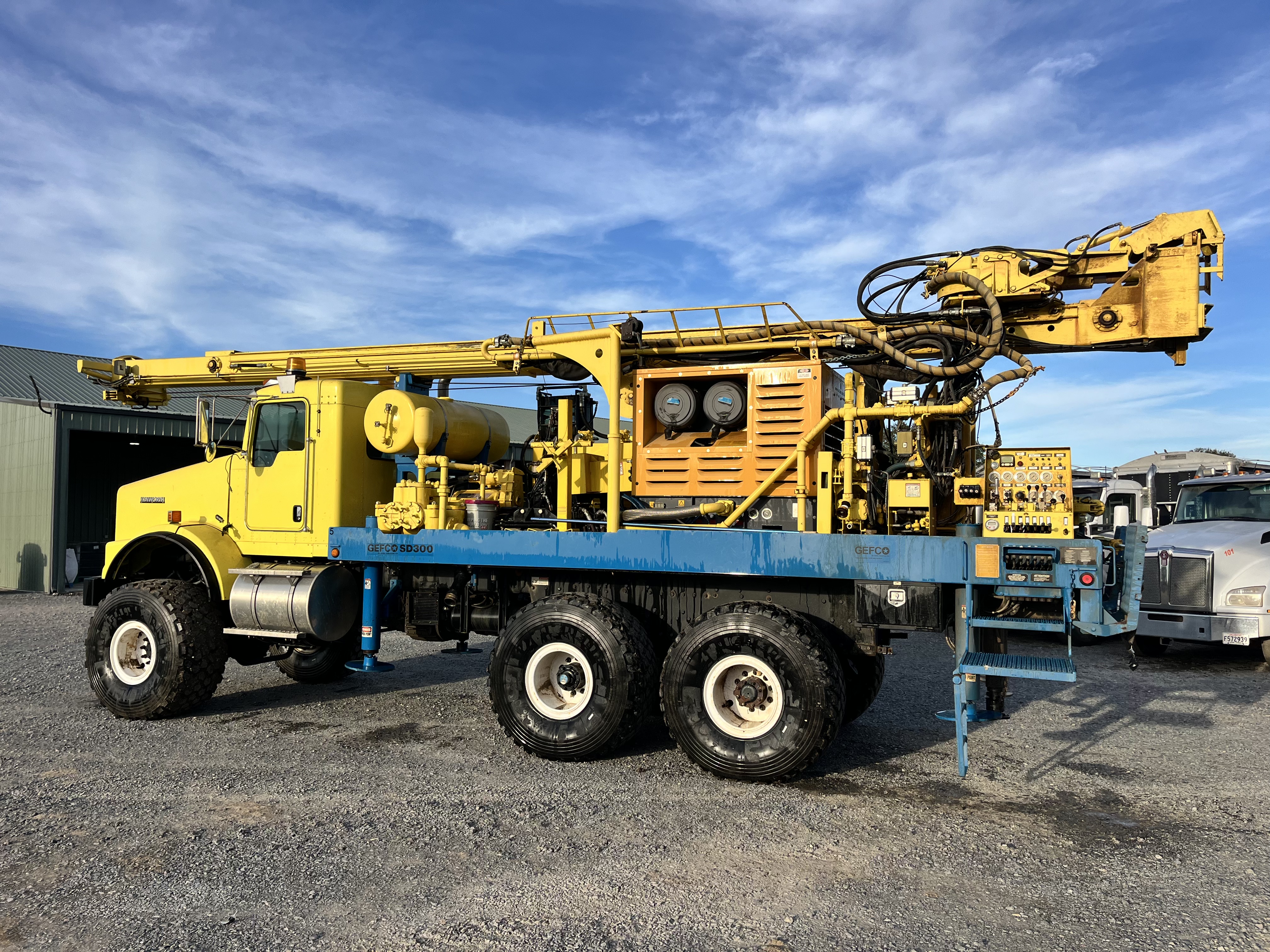

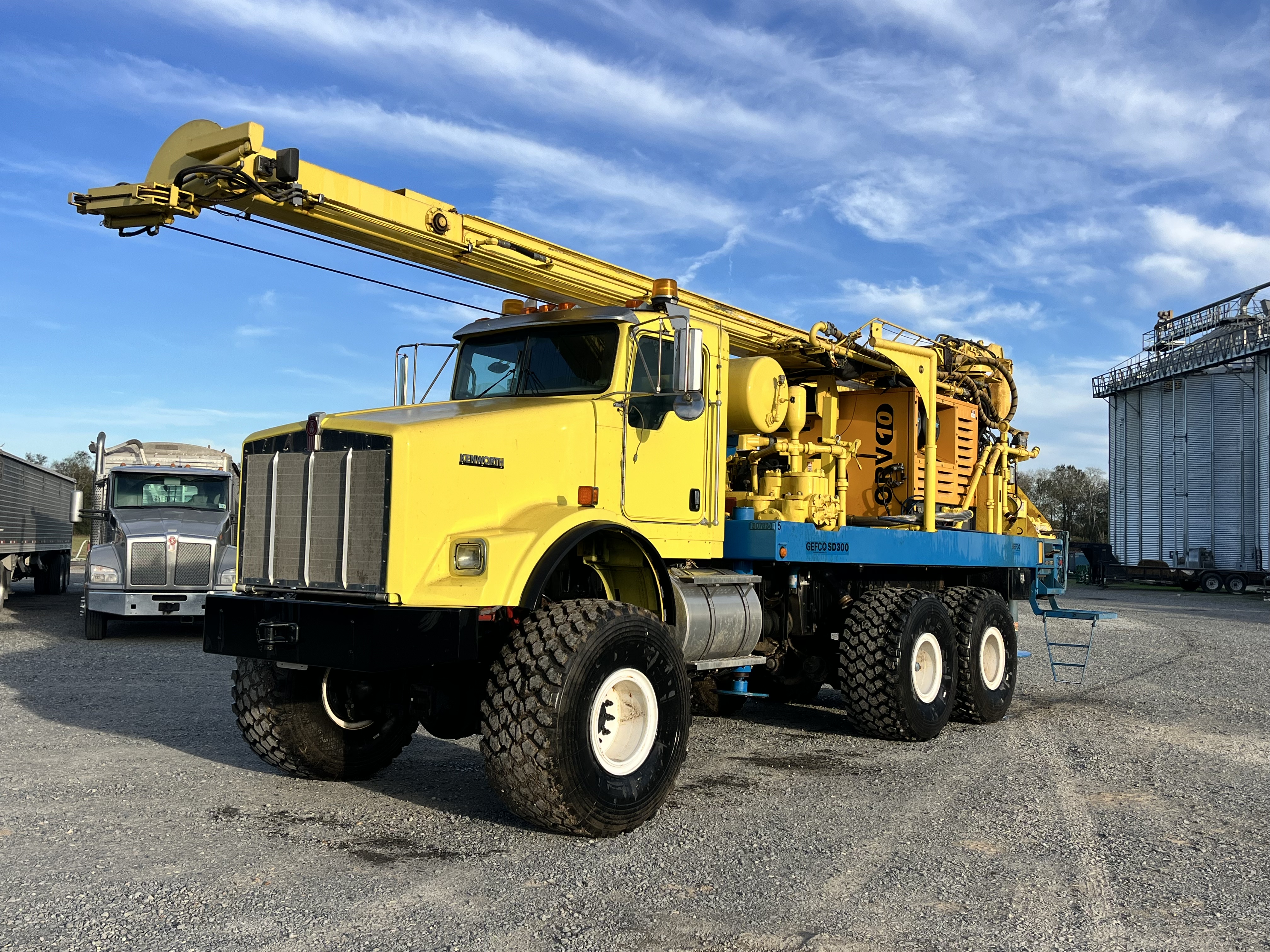

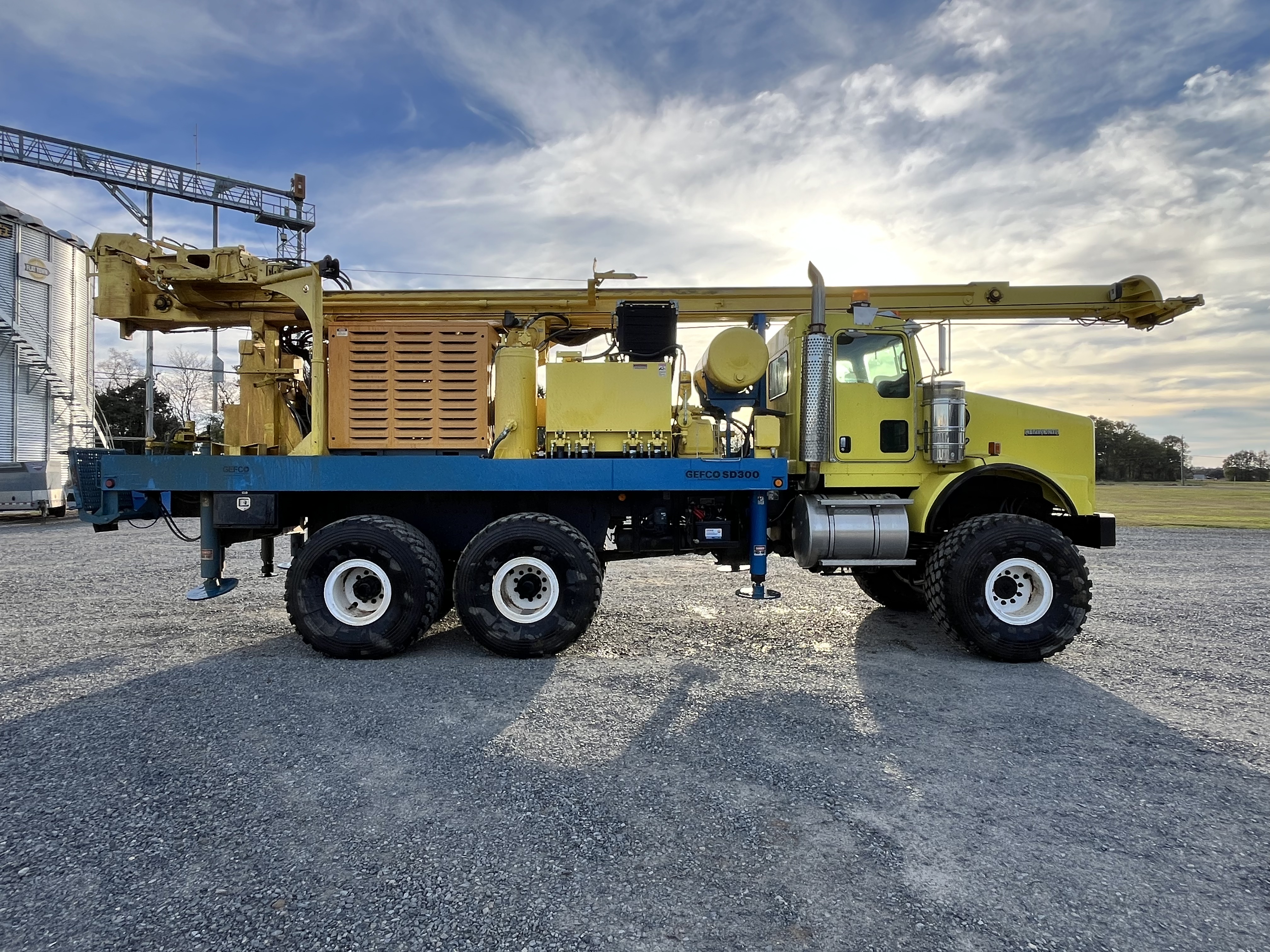

2015 GEFCO Stardrill 300HD Drill Rig

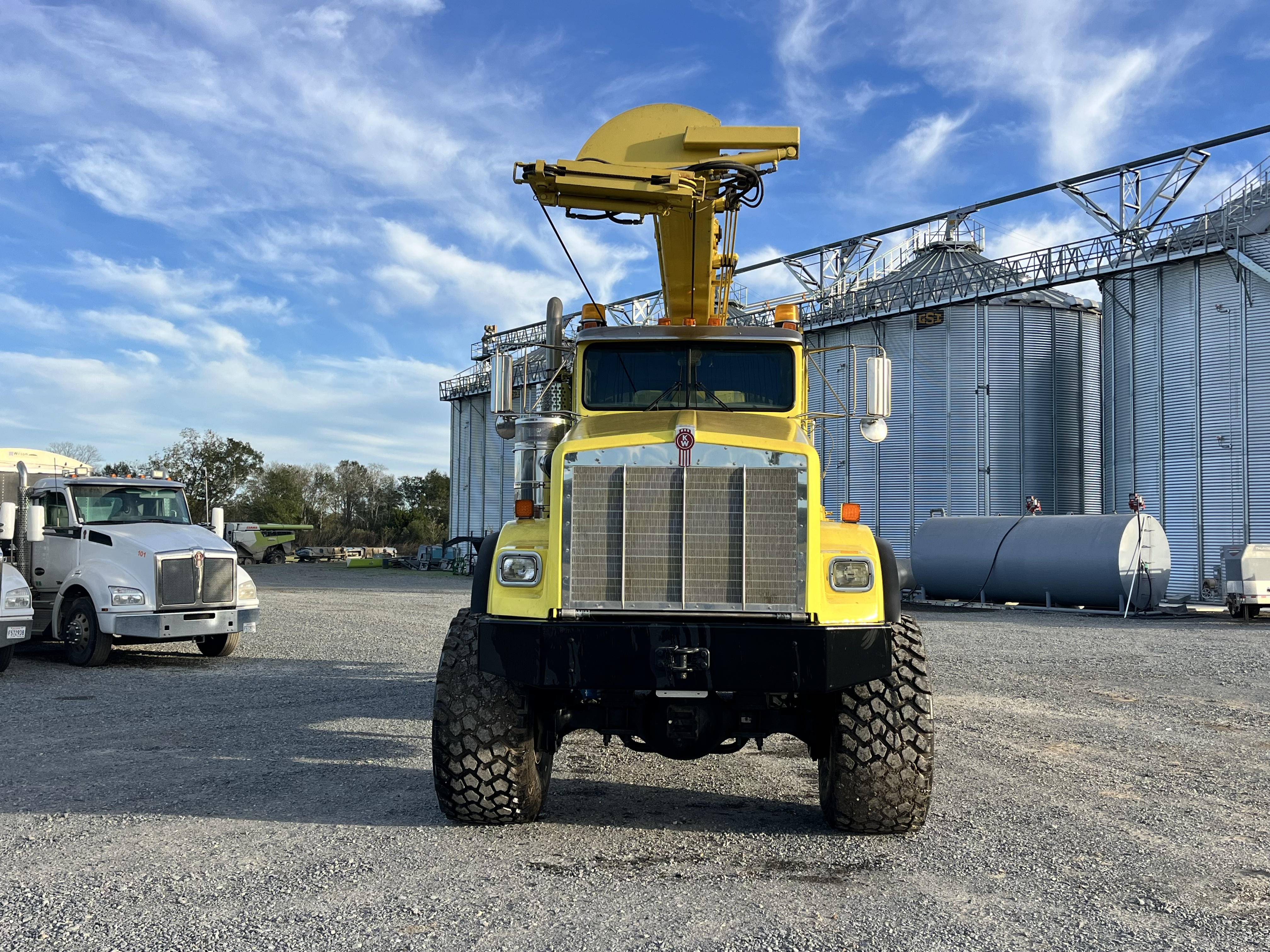

- Rig is mounted on Kenworth T-800 6X6 Truck. With a wheelbase of 4,500 mm + 1524mm (to allow for tire deflation). G.C.W. 72,600 lbs
- Direct Circulation Rig with Mud & Air Drilling Applications
- Cummins ISX 500 rated at 525 hp (NON- EMISSION COMPLIANT)
- Transmission: Fuller 10-Speed with internal oil cooler
- Gear type heavy duty PTO power gear transfer for transferring truck engine power to the hydraulic pump & air compressor
- 4 Hydraulic Leveling Jacks
- 12" Square tube mast with 60,000 lbs capacity
- Free height under Jib Boom 36' 6" can handle 4.5m or 6.0m or 2 4.5m rods at a time
- Gardner Denver FXG 5X6 duplex mud pump
- Max. pullback capacity 24,000 LBS
- Atlas Copco model ORV-10 rotary screw compressor (1000CFM x 365PSI)
- 3 Cylinder Water Injection Pump
- Downhole hammer oiler
- Single pipe loader & pipe spinner & breakout wrench
- Comes with rig lighting
- Atlas Copco model ORV-10 rotary screw compressor (1000CFM x 365PSI)
- 12 Ton Hydraulic Winch
- 12" Square tube mast with 60,000 lbs MAX capacity, Adjustable Jiv Boom
- Gardner Denver FXG 5X6 duplex mud pump
- Transmission: Fuller FRO16210C 10-Speed
- Total weight per unit 58,200 LBS
- SPEC SHEET MORE YOUTUBE VIDEOS ON RIG
- YOUTUBE CLIPS
Additional information
| Color | Blue, Yellow |
|---|---|
| Condition | Very Good |
| Industry | Water Well, Mineral Exploration / Mining, Environmental / Geothermal |
| Manufacturer | GEFCO |
| Year | 2015 |
| Model | Stardrill 300HD |
| Mounted On | Truck |
| Engine Specs | Cummins ISX 500 Export electronic diesel engine rated at 525 HP (NON-EMISSION COMPLIANT) |
| VIN | 1NKDL40X5FR448329 |
| Title | Yes |
